Understanding Outflow Control Structures

An outflow control structure is a hydraulic device that throttles the rate at which water leaves a manhole, storage chamber, or other drainage element into the downstream pipe network. By holding water back in upstream storage and metering the discharge, these structures protect downstream pipes from being overwhelmed during a storm and help meet release-rate limits set by local stormwater regulations. They are a routine part of detention systems, infiltration basins, combined sewer overflow (CSO) controls, and post-development release-rate control.

This article explains how outflow control structures work, how to define them in the software, and the most common errors to watch for when setting them up.

Why Outflow Controls Matter

The job of an outflow control is to convert short, intense storm inflows into longer, lower-rate outflows. Without that throttling, post-development discharges from a developed site would normally exceed the capacity of the downstream pipe network and the receiving channel. Outflow controls allow the user to size detention storage appropriately and ensure that a design meets agency release-rate limits for the design storm frequencies.

Common reasons to model an outflow control structure include:

• Meeting an allowable peak discharge limit for a developed site (for example, "post-development peak shall not exceed pre-development peak for the 2-year, 10-year, and 100-year storms").
• Sizing a detention or retention basin to a specific stage-discharge relationship.
• Throttling a CSO regulator so that combined sewer overflows occur only above a defined threshold.
• Protecting an undersized downstream pipe from surcharging during larger storms.

Types of Outflow Control Structures

GeoSTORM supports two types of outflow control structures:

• Orifice Control
• Vortex Control

Orifice Control

An orifice control regulates flow from a manhole into the downstream pipe network. In GeoSTORM, it is represented as a flat plate with a circular or rectangular opening. As the water surface in the upstream manhole rises, the head over the orifice increases, and the flow through it follows the standard orifice equation. The orifice can also include a flap gate to prevent reverse flow when downstream water surface elevations are higher.

Orifice controls are simple, inexpensive, and easy to maintain, which is why they are by far the most common throttling device in detention systems. They behave predictably over the full range of operating heads and are well-suited to slowing peak flows and protecting downstream infrastructure.

Vortex Control

A vortex control regulates flow using the hydraulic principle of vortex formation rather than a simple opening. Inside the device, swirling water forms an air-cored vortex at higher heads, which limits the discharge for a relatively wide range of upstream water surface elevations. In GeoSTORM, the vortex control is defined by a head-discharge rating curve that lists the discharge at each water surface elevation. Similar to the orifice, a flap gate can be added to prevent reverse flow when downstream water surface elevations are higher.

Vortex controls are especially useful in stormwater detention systems because they keep peak discharges low while allowing larger openings that minimize the risk of clogging from leaves, sediment, and debris that often plagues small orifices.

Defining Outflow Control Structures in GeoSTORM

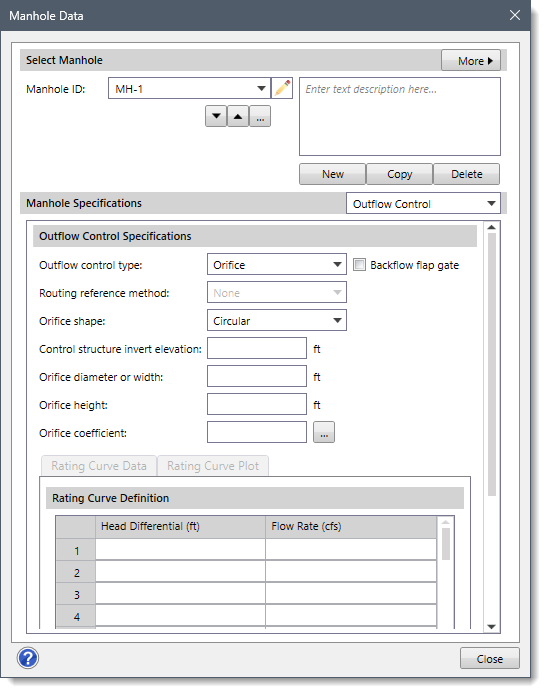

In GeoSTORM, the user can define outflow control structures using the Outflow Control panel from the Manhole Data dialog box. Refer to this article in our knowledge base to learn more about the Manhole Data command.

Common Errors When Defining Outflow Control Structures

The following errors may be encountered when setting up orifice and vortex outflow controls in GeoSTORM.

Orifice Control Errors

• Incorrect placement: Defining the orifice at the wrong elevation (for example, placing it too high above the base of the manhole) can cause the structure to release flow too late or not at all.
• Wrong dimensions: Entering incorrect diameter or area values causes the discharge rate to be overestimated or underestimated for every water surface elevation.
• Missing flap gate: Forgetting to add a flap gate in backflow-prone areas can result in reverse flows when downstream water surface elevations rise above the upstream side.
• Unit mismatch: Mixing metric and imperial units when entering size parameters leads to unrealistic discharge results.

Vortex Control Errors

• Incomplete head-discharge curve: If the rating curve does not cover the full range of expected water surface elevations, the software may produce errors or extrapolate into unrealistic outflow behavior.
• Non-monotonic data: Entering a head-discharge curve where flow decreases at higher heads (instead of remaining constant or increasing) can cause model instability.
• Improper scaling: Using very small or very large flow values without proper calibration may exaggerate throttling effects or show no vortex formation at all.

Conclusion

Outflow control structures determine how stored runoff is released from a stormwater facility. Accurate modeling depends on more than selecting a structure type; the opening dimensions, elevations, coefficients, storage relationship, and downstream conditions must all be consistent with the design. A careful review of these inputs helps the software produce routed hydrographs and ponding results that better reflect the real system.
