Scenario Summary (GeoSTORM)

In GeoSTORM, the Scenario Summary command provides an overview of all scenarios, geometry models, storm models, analysis specifications and other details (such as element details, modeling specifications, and storm data) associated with a project.

Follow the steps given below to use the Scenario Summary command:

1. From the Input ribbon menu, select the Scenario Summary command from the Scenario Manager dropdown combo box.

2. The Scenario Summary dialog box will be displayed, as shown below.

   Note that the Scenario Summary dialog box can also be displayed by clicking the [Summary] button of the Scenario Manager dialog box.


The below sections describe the information displayed in the Scenario Summary dialog box.

General Information

This section displays the project name, the project run file name, and the directory path for the project. It also displays a read-only field containing the project description added by the user.

Scenario (Geometry Models)

This section lists the names of all scenarios and their corresponding geometry models, storm models and analysis specifications in a tabular format. The current scenario of the project is selected by default. The user can select a scenario and its corresponding storm model and analysis specification will also be selected in the Storm Models and Analysis Specifications sections.

Storm Models

This section lists all storm models associated with the project.

Analysis Specifications

This section lists all analysis specifications associated with the project.

Current Simulation Run Detailed Information

This section provides detailed information relating to the scenario selected in the Scenario (Geometry Models) section.

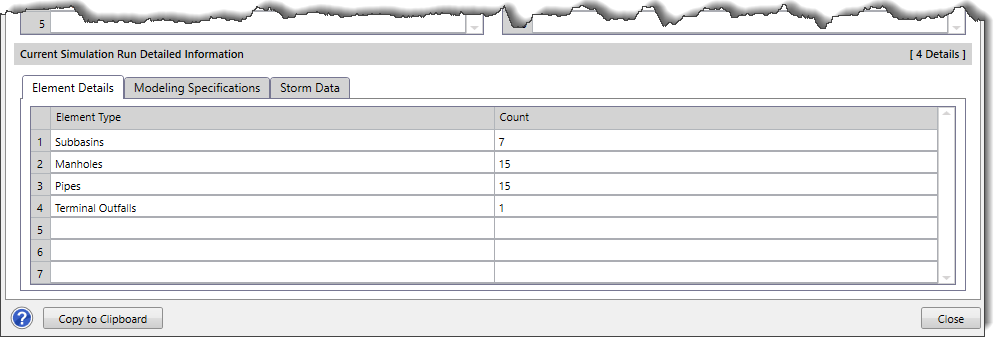

Element Details

The Element Details panel lists all the elements contained within the selected scenario (e.g., subbasins, junctions, manholes, pipes, etc.).

Modeling Specifications

The Modeling Specifications panel lists the selected hydrology engine and other modeling specifications defined for the selected scenario.

Storm Data

The Storm Data panel lists the precipitation type and other related storm data defined for the selected scenario.

Note that by clicking the [Copy to Clipboard] button, the contents of the Scenario Summary dialog box is copied to the Windows clipboard.
