Merge Roadway Segments Command

In GeoSTORM software, the Merge Roadway Segments command allows the user to merge two or more roadway segments into a single roadway segment. The roadway segments must be adjoining each other, end to end, along a single alignment.

Follow the steps below to use the Merge Roadway Segments command:

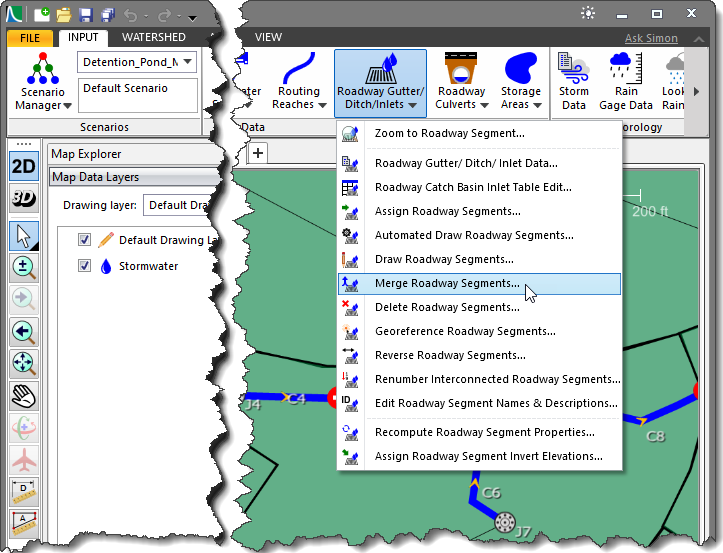

From the Input ribbon menu, click on Roadway Gutter/Ditch/Inlets dropdown menu and select the Merge Roadway Segments command.

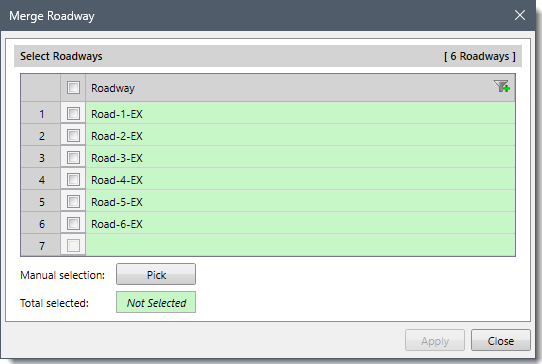

The Merge Roadway Segments dialog box will be displayed.

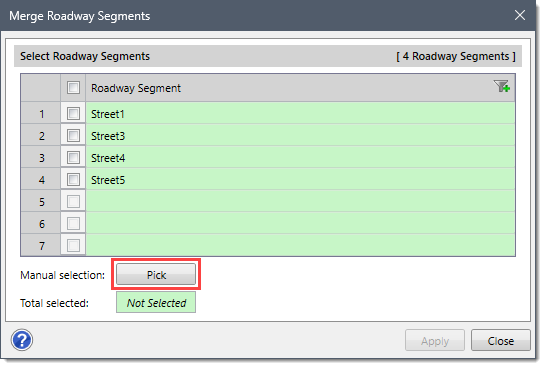

From the Select Roadway Segments section, check the checkboxes corresponding to the roadway segments to be merged. Alternatively, click the [Pick] button to manually select roadway segments from the Map View.

Note: To select/deselect all roadway segments at once, check/uncheck the Roadway Segment checkbox.

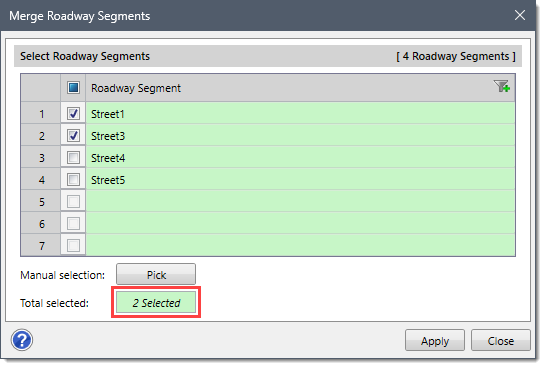

The number of selected roadway segments will be displayed in the Total selected read-only field.
The selected roadway segments will also be highlighted on the Map View. To abort the Map View selection process, press the [Esc] key or right-click and select Cancel from the displayed context menu.

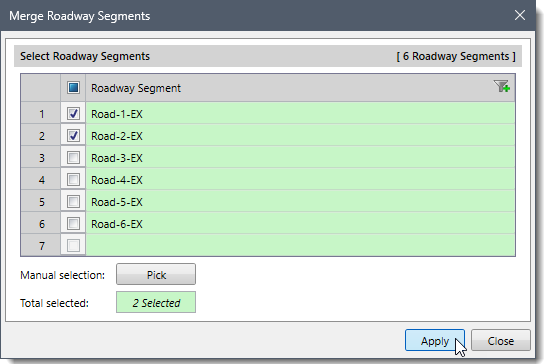

After selecting the roadway segments, click the [Apply] button and the software will merge all selected roadway segments.

Note that if the selected roadway segments that are to be merged are not connected along a single alignment, then the following informational dialog box will be displayed.
